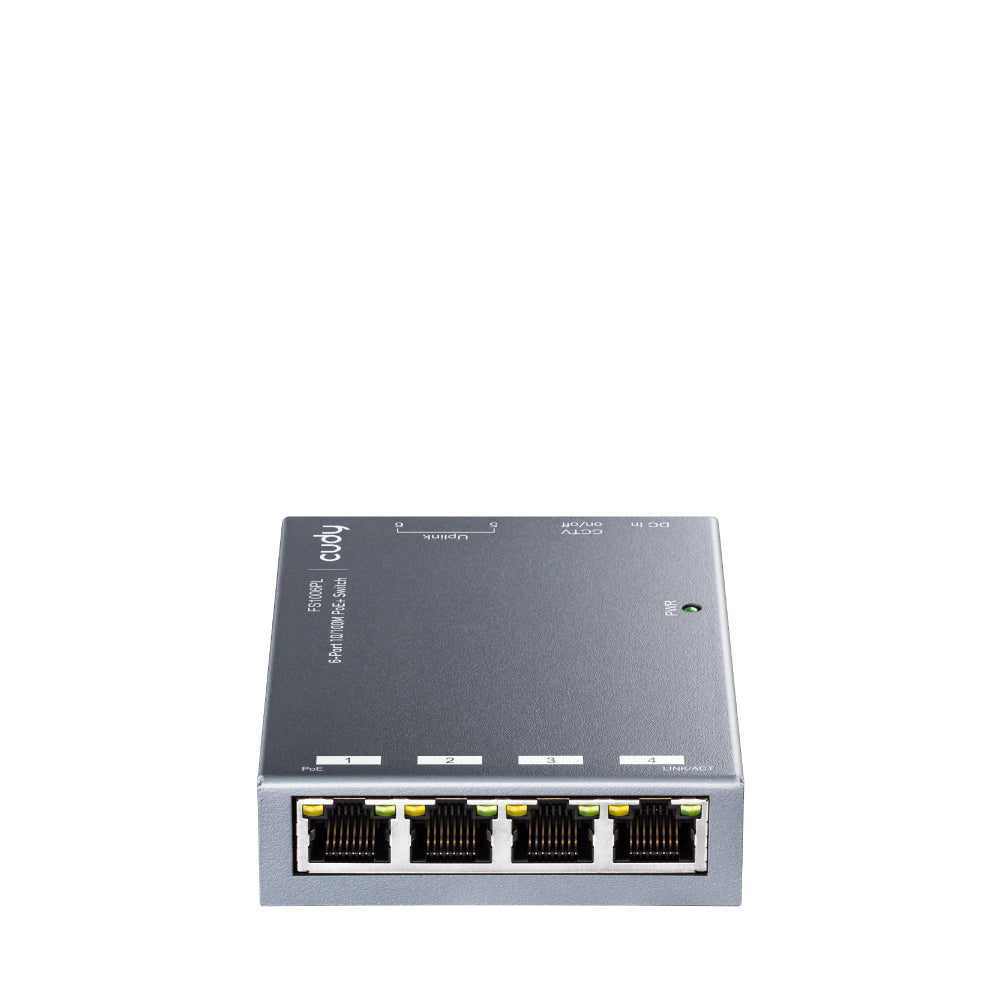

6-Port 10/100M PoE+ Switch, Model: FS1006PL - FS1006P
6-Port 10/100M PoE+ Switch, Model: FS1006PL - FS1006P
Stokta yok
SKU:FS1006PL
Teslim alım stok durumu yüklenemedi
● 60 watts PoE power supply, up to 30 watts per port
● 4 10/100M PoE ports + 2 10/100M uplink ports
● CCTV mode support remote PoE feeding up to 250m
● LED for easy monitoring LNK/ACT/PoE status
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed
 |
 |
 |
|
60W Power budget & 30W Maximum One Port Supports 60W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard |
Auto-sensing technology Meets IEEE 802.3af / at standard, auto-sensing technology delivers up to 30 W to an 802.3at PoE + device with backward compatibility for 802.3af PoE (15.4 W) devices. |
Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-) |
 |
 |
 |
|
Surveillance Works with IP Cameras for home and office, small business |
VoIP Conference Call Works with VoIP phones for business conference |
Wi-Fi Coverage Works with WiFi APs for office and business |
Specifications
| Model | FS1006PL | ||

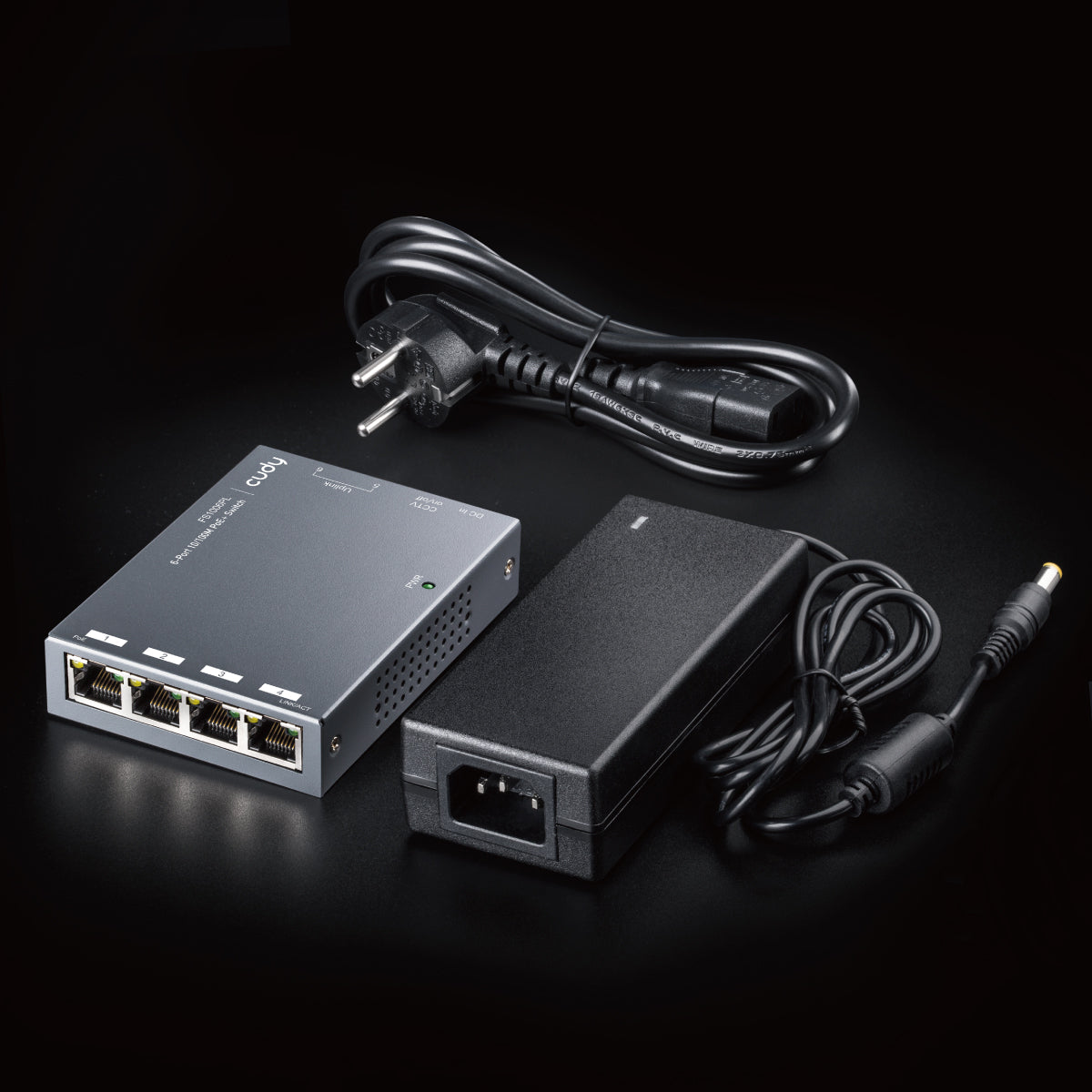

| Power | Power supply | External Power Adaptor | |
| Voltage Range | DC48~57V | ||
| Switch Consumption | <5W | ||
| Ethernet | Speed | 1~5 Port : 10/100Mbps, Uplink:100Mbps | |
| Transmission Distanc |
1-4port 100Meters with 100Mpbs 200Meters with 10Mbps Uplink:100Meter with 100Mpbs |
||
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3af/802.3at | |
| Switching capacity | 1.2G | ||
| Transfer Rate |
14,880pps for 10Mbps 14,8800pps for 100Mbps |
||
| MAC Address | 1K MAC address table | ||
| Function | On | — | The vlan and 200meters is start to work |
| Link/ACT | On | Green | The port is connecting |
| Blinks | — | The port is receiving or transmitting data | |
| Off | — | The port is not linked successfully with the device | |
| POE | On | Orange | PD is connected |
| Off | — | No PD is connected or power forw arding fails |
|
| Capacity | 55W | ||
| Bandwidth | PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0~40℃ | |
| Storage Temperature | -40~70℃ | ||
| Humidity Non condesing | 0~85% | ||
| Mechanical | Dimension | 102mm×75x22mm | |
| Color | Gray | ||
