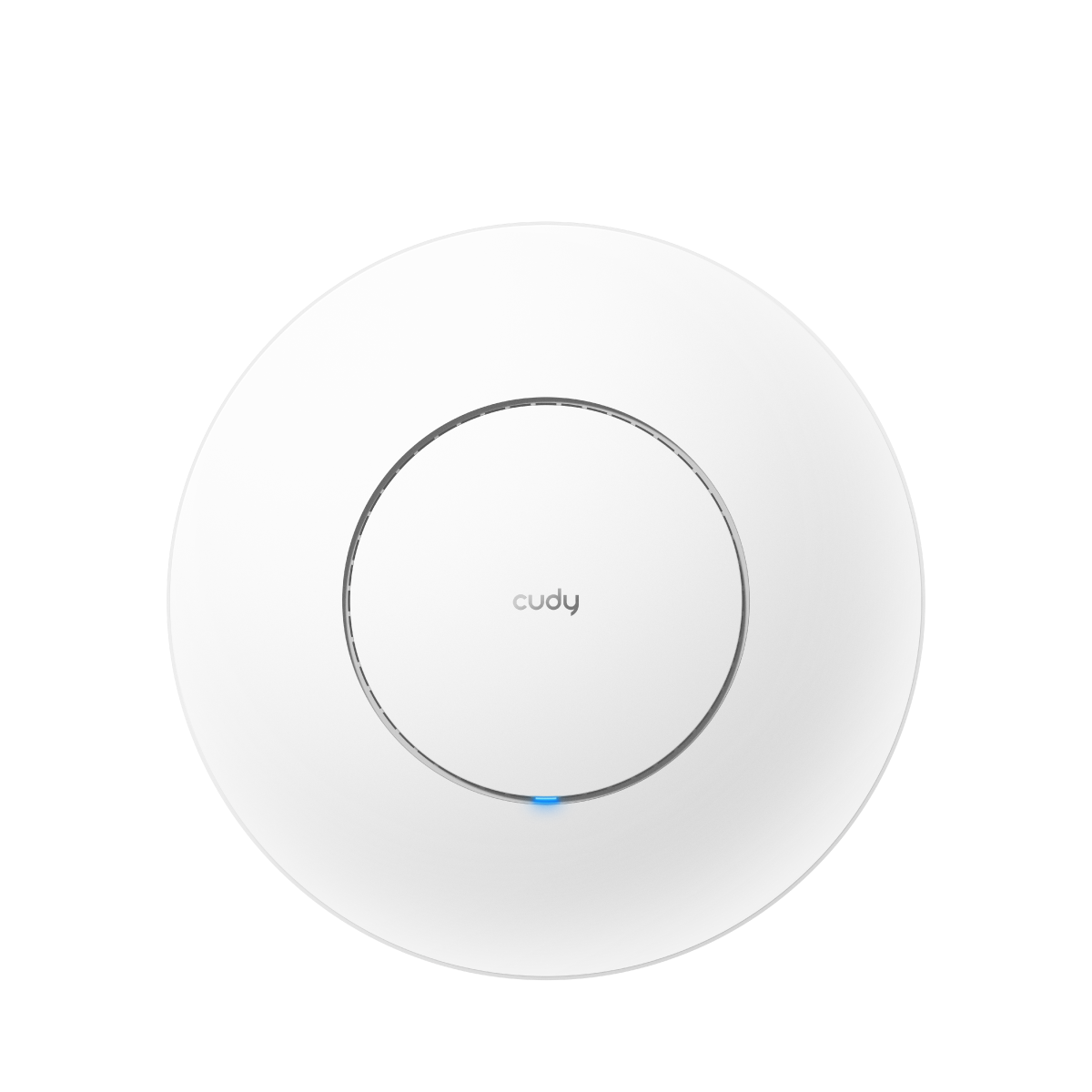

AC1200 Gigabit Wireless Access Point, Model: AP1300
AC1200 Gigabit Wireless Access Point, Model: AP1300
Stokta yok
SKU:AP1300
Teslim alım stok durumu yüklenemedi
● AC1200 Dual Band Wi-Fi Speed
● MT7621DA+MT7613B+MT7603E
● 1× Gigabit WAN/LAN (PoE In)
● 802.3at/af PoE, Passive PoE, or DC (DC adapter included)
● Multi-Mode: AP/Router/RE/WISP
● Mesh
 |
 |
|
Connects More Devices
|
Boosted Coverage
|
| Mesh Ready for Seamless Coverage |
 |
| Mesh support (802.11k/v) allows clients to switch between access points seamlessly,ensuring uninterrupted Wi-Fi calling or live streaming when moving around. *Requires a Cudy Wi-Fi router/Mesh unit/VPN router/AC as a gateway with firmware newer than 15.28. |
| Flexible Wired-and-Wireless Hybrid Backhaul | |
 |
 |
| Simple Wireless Mesh Backhaul | Hybrid Backhaul for Higher Performance |
| Multi-Mode for Multiple Scenarios | |||
 |
 |
 |
 |
|
Access Point
|
Wi-Fi Router
|
Range Extender
|
WISP
|
| Advanced Business AP Features | |||
 |
 |
 |
 |
|
Captive Portal
|
Band Steering
|
Auto Channel Optimization
|
Self-Organizing Mesh
|
| *The advanced business features require a Cudy access point controller as a gateway. Cudy AP controller is coming soon. | |||
| Versatile Powering and Installation | |
 |
 |
|
PoE or DC Power Supply
24-57 V Passive PoE DC (DC adapter is included in the box) |
Versatile Mounting
Mounting kits are included in the box. |
Specifications
| Hardware Features | Highlights | CPU: 880 MHz Dual-Core Processor |
| Flash: 16 MB (128 Mbit) | ||
| DDR: 128 MB (1 Gbit) | ||
| Interface | 1× Gigabit Ethernet Port (PoE In) | |
| 1× Reset Button | ||
| 1× DC Jack | ||
| Power Supply | 802.3af/at PoE | |
| 24-57 V Passive PoE (+4,5pins; -7,8pins) | ||
12 V ⎓ 1A DC | ||
| Power Consumption | Idle: 4 W | |
|
PoE Max: 11 W DC Max: 7.5 W | ||
| Dimensions ( W×D×H ) | 232×232×57.1mm | |
| Antenna Type | 4× Internal Omni-directional Antennas |
|
| Mounting | Ceiling/Wall Mounting (Kit included) | |
| Wireless Function | Wireless Standards | Wi-Fi 5 (802.11ac/n/g/b/a) |
| Frequency | 2.4 GHz and 5 GHz | |
| Signal Rate | 5 GHz: Up to 867 Mbps | |
| 2.4 GHz: Up to 300 Mbps | ||
| Channel Width | 20/40/80 MHz | |
|
Wireless Functions (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023) (Features with △ require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28) |
Multiple SSID* | |
| Captive Portal* | ||
| Seamless Roaming Mesh△ | ||
| Self-Organizing Mesh△ | ||
| Band Steering* | ||
| Auto Channel Optimization* | ||
| Enable/Disable Wireless Radio | ||
| Transmit Power Control | ||
| QoS (WMM) | ||
| MU-MIMO | ||
| Beamforming | ||
| Rate Limit | ||
| Reboot Schedule | ||
| Wireless Schedule | ||
| Wireless Encryption | WPA-PSK | |
| WPA2-PSK | ||
| WPA-PSK/WPA2-PSK | ||
|
Security (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023) |
IP/MAC Filtering | |
| AP Isolation* | ||
| Operating Modes | Wireless Access Point Mode | |
| Wireless Router Mode | ||
| Wireless Extender Mode | ||
| WISP Mode | ||

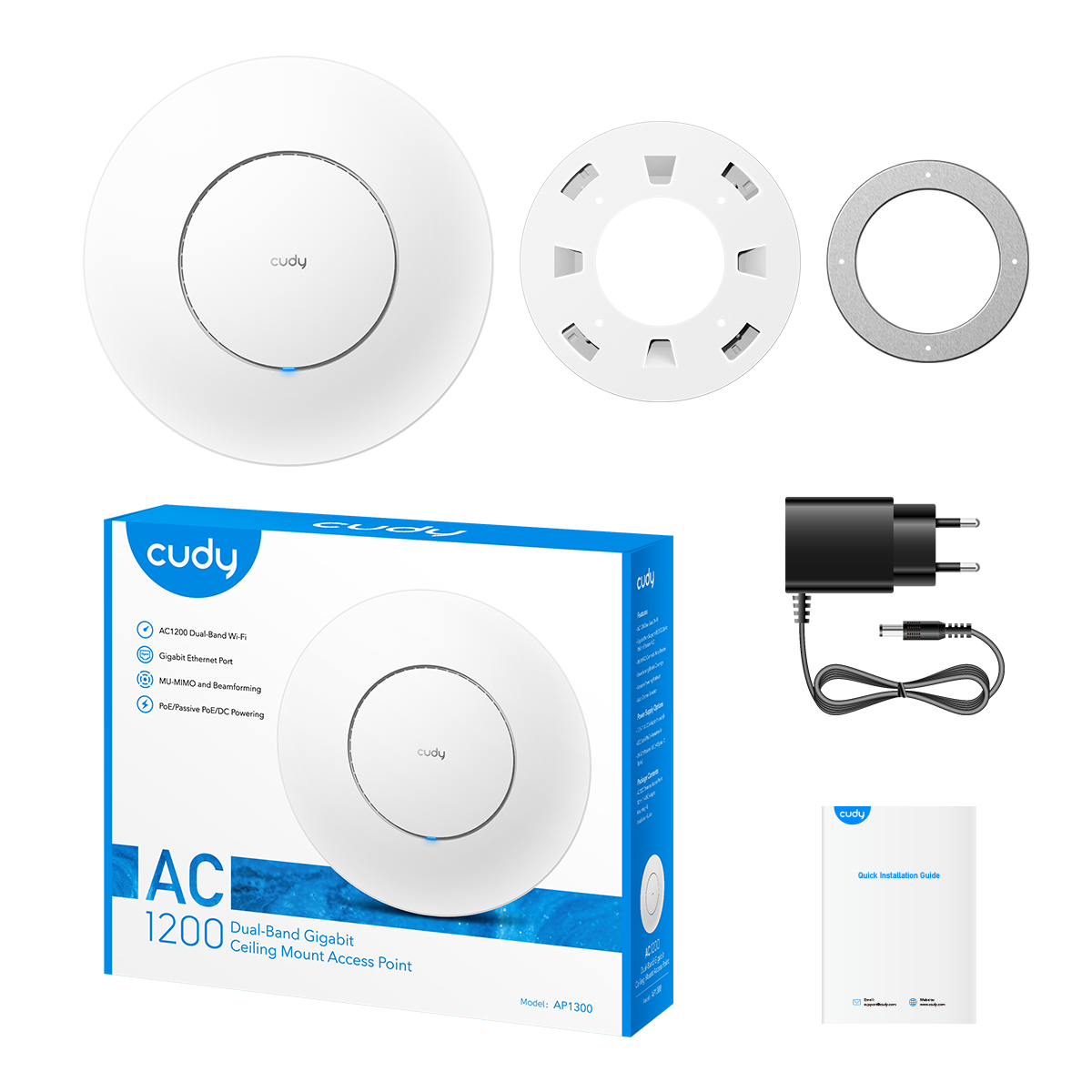

| Package Content | Access Point | |
| DC Adapter | ||
| Mounting Kit | ||
| Installation Guide | ||
| Environments | Operating Temperature: 0~40 °C (32~104 °F) | |
| Storage Temperature: -40~70 °C (-40~158 °F) | ||
| Operating Humidity: 10~90% RH non-condensing | ||
| Storage Humidity: 5~90% RH non-condensing | ||
| System Requirements | Windows, MAC OS, NetWare, UNIX, or Linux | |
| Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browser | ||
| A fiber/cable/DSL Modem, or other devices providing wired internet | ||
| Subscription with an internet service provider for internet access | ||
| A power socket for AC power supply, or PoE power supply | ||
|
Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023. Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28. | ||
